How it works
The Infinity Shower is a compact recirculating shower system designed for a van that recirculates 1 gallon of water in a vertical pattern. The water leaves the shower head, goes down the drain, passes through a series of filters including a UV Sterilizer that kills bacteria and then back out of the shower head. The water is completely drained between showers.
The Infinity Shower is thoughtfully designed to conserve water, maximize energy efficiency, and maintain cleanliness, providing you with a premium shower experience anywhere in the world.
-
Step 1: Turn on shower
Use your traditional shower handle to start the water.Step 2: Recirculate
Press the Infinity button. The pan fills with 1 gallon automatically, and water begins recirculating through the shower head.Step 3: Drain
Turn off Infinity mode — the system will begin draining automatically. Your traditional shower will resume; simply turn it off when you're done.
Watch a demo video of how the
Infinity Shower works

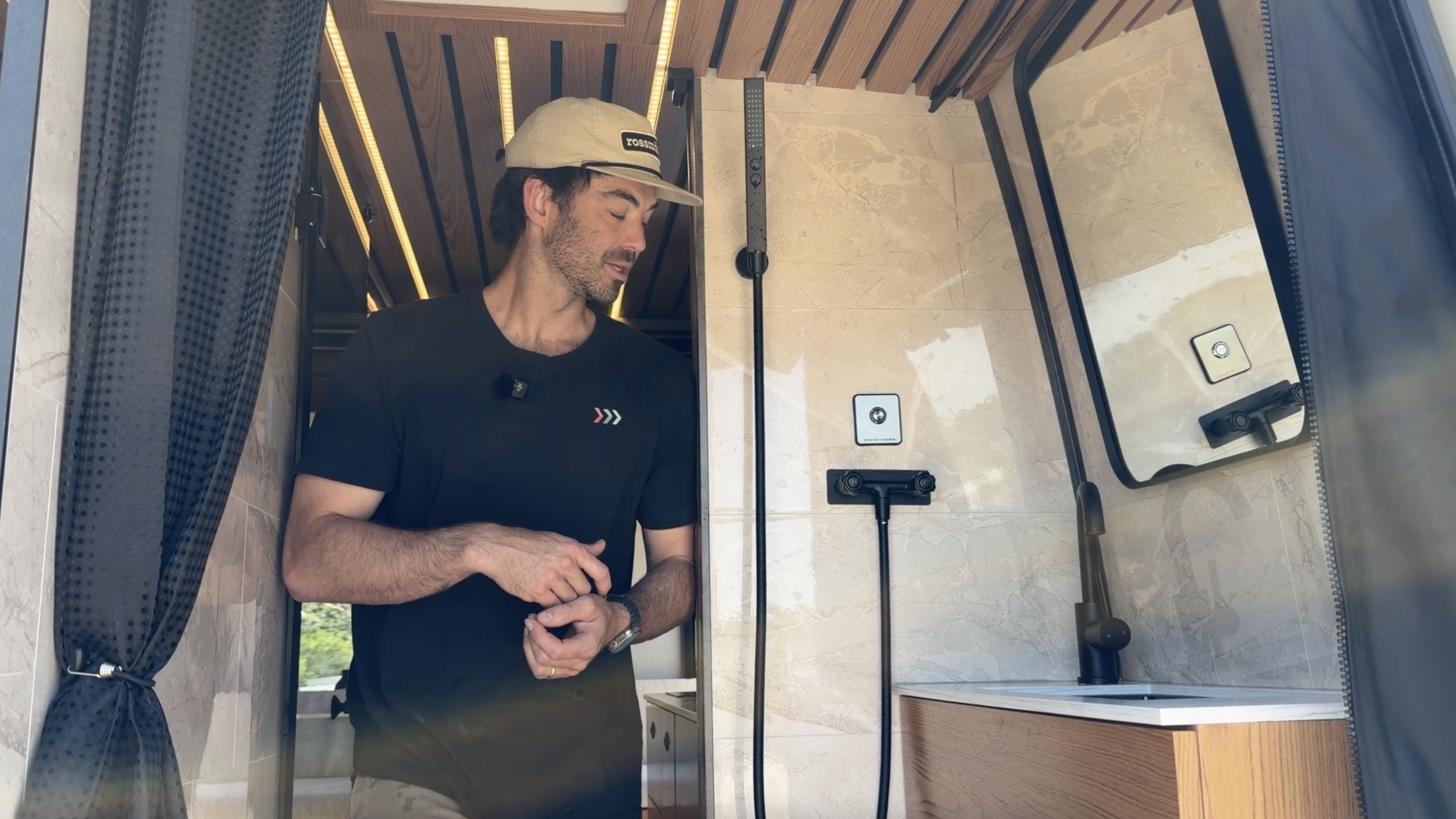

A view inside the shower
Three things will be installed inside your shower - the Infinity Shower Head, Control Panel, and traditional shower handle (all are included in the complete kit). The Infinity Shower head is a two in one design. The outer ring adds fresh water like a traditional shower and the inner ring activates when you want to start recirculating in Infinity Mode. Our system can also be installed with any shower head.
The Control panel has a button (to turn on the Infinity Shower and start recirculating), a temperature gauge to control the temperature while showering (option to upgrade to our custom wooden knob as pictured), and a place to mount your Infinity Shower wand.
The Infinity Shower Core can be mounted beneath your sink or inside the shower wall upon installation. The UV Sterilizer and Micron Filter will also be installed beneath your sink for easy access. We recommend cleaning the micron filter every 5 days and the UV light should be replaced once a year.
A view beneath your sink
Water Conservation Calculator
Calculate how long you can stay off-grid with the Infinity Shower versus a traditional shower.
Traditional Shower vs. the Infinity Shower
What’s included in the kit
The Infinity Shower system consists of five main components
The Infinity Shower Core
The Core houses all electrical and plumbing connections, including the electrical motherboard. Thoughtfully designed to be compact & space-saving. Installation beneath a sink is recommended.
The Control Panel
Mounted inside the shower, the control panel has one button to turn the Infinity System on and off. The dial controls the temperature in real time. While showering, you can adjust the temperature to your preference.
The Infinity Shower Head
The wand (inner ring) delivers the Infinity Shower water, while the outer ring and standard shower handle allow you to add fresh water to rinse off before or after your Infinity Shower.
Micron Filter + UV Sterilizer
The micron filter removes the smallest particles, and the UV light filter sterilizes bacteria and other pathogens. The UV light bulb should be replaced annually, and the micron filters can be cleaned by hand. Designed to be installed above the Core beneath a sink for easy access.

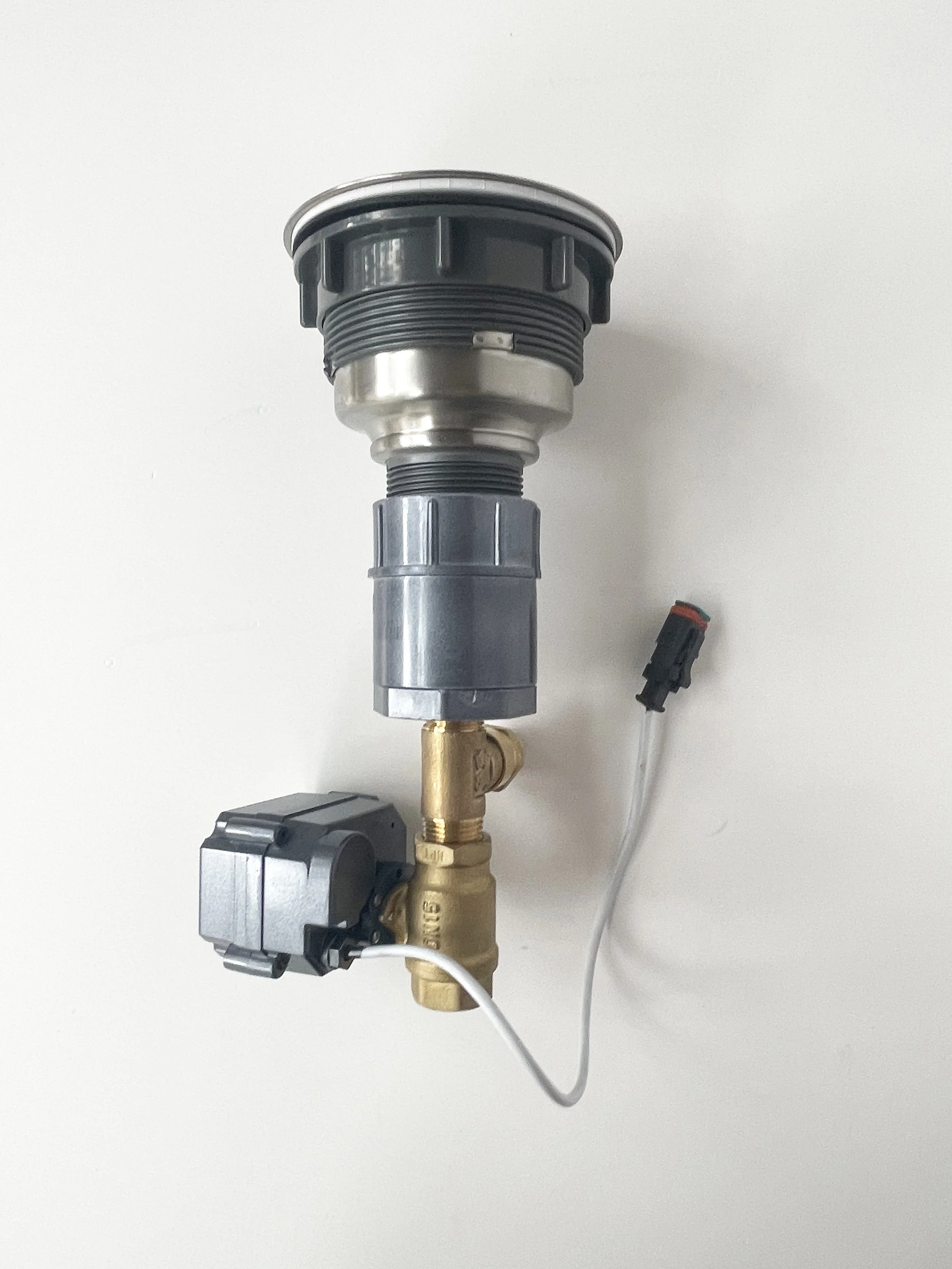

The Infinity Drain
This electronic drain with a filter element redirects water to the shower head, conserving water. The strainer and filter combo removes larger particles, and the drain comes in both 3" and 2" sizes to fit most shower pans.
Still have questions?
We’re here to help! If you have questions about the Infinity Shower, reach out and a member of our team will be in contact soon.
